纸宽:
58mm / 60mm / 80mm /83mm

打印速度 Printing speed:
250mm/sec. (max.)  *1

特点Features:
高速打印

使用寿命长 (打印头: 150Km , 自动切刀Auto cutter: 2百万次)

日本制造 Made in Japan

产品简介

特征

体积小,重量轻,适用于各种系统和设备

最高250毫米/秒高速打印

标准最大φ120mm纸卷

自动加载功能

可选择部分切割或全切割

可用于Windows驱动程序、实用程序驱动程序、Linux和远程状态监视器

使用寿命长(刀头:150Km耐磨,自动切割机:200万次切割)

日本制造

提供标签设计软件

*1: 使用交流适配器,打印率小于25%

*规格如有更改,恕不另行通知



Specifications技术规格

Printing method热敏

Direct line thermal

Paper dimensions

最大直径

Max.φ120mm

Paper thickness

纸厚度

Without presenter model: 59 to 150um (52g/m2 to 128g/m2)
With presenter model: 59 to 100um (52g/m2 to 85g/m2)

Paper core diameter

纸卷内径

Internal φ12mm or φ25.4mm

Paper width

纸卷宽度

58mm / 60mm / 80mm /83mm

Print width

打印宽度

54mm / 56mm /72mm /80mm

Number of dots

432 dots / 448 dots / 576 dots /640 dots

Resolution分辨率

8 dots/mm (203dpi)

Printing speed

打印速度

250mm/sec. (max.)  *1

Paper Sensors

感应器

Near end Sensor/Paper empty Sensor纸将尽感应器
BM(Black mark) Sensor/Gap Senssor黑标/孔感应器

Paper near-end

φ21.0 mm / φ24.5mm / φ35.0mm

Cutter切刀

Partial / Full cut切纸方式

Interface接口

Serial(RS-232C), USB接口

Character type字体

ASCⅡ: PC437/850/852/857/

858/863/865/866/860/862/864/737,
WPC1252/1252_2/1254/1250/1251

Download: Available

Font / Dots / Lines

Printing width: 54mm / 56mm / 72mm / 80mm

ASCⅡ 16 dots: 8 x 16 dots (WxH), 54/56/72/80 lines

ASCⅡ 24 dots: 12 x 24 dots (WxH), 36/37/48/53 lines

Memory内存

Input buffer 8k bytes, User memory, Non-volatile memory

Logo registration图像

Download bit image

Barcode条码

1D: UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128,
GS1 Databar Omni-directional, Truncated, Limited, Stacked,
Stacked Omni-directional

2D : QR, MaxiCode, PDF417, Data Matrix

Command systems

ESC/POS Conformity *2

Regulation

VCCI, FCC, CE, CLASS A

Printing life寿命

Pulse activition: 200 million pulses or more
Abrasion resistance: 150Km or more

Cutter life切刀寿命

Cutting life 2 million cuts or more (Thickness 75um (60 g/m2)/ or less)

Power supply电源

DC Power supply DC 24V±5% / TYP 2.7A

Current consumption

电流

Standby: 70mA or less
Printing: Average 2.5A  (Peak 7.5A)

*DC 24.0V, Printing rate 12.5%%, at room temperature

Operating environment

操作环境

Temperature: -20 to 60 ℃
Printing quality is guaranteed from +5 to 40 ℃

Humidity: 20%RH to 85%RH (No condensation)

Storage environment

存储环境

Temperature: -30 to 70 ℃

Humidity: 10%RH to 90%RH (No condensation)

Dimensions尺寸

φ83mm: 127×129.2×73.6mm(W×D×H)

φ102mm:127×137.3×79.5mm(W×D×H)

φ120mm:127×145.5×85.4mm(W×D×H)

Weight重量

Approx. 630g(without paper roll)

Features特点

high-speed printing

Long service life (Head: 150Km Abrasion resistance, Auto cutter: 2million cuts)

Made in Japan

Accessories配件

  • CB-SK1-D1

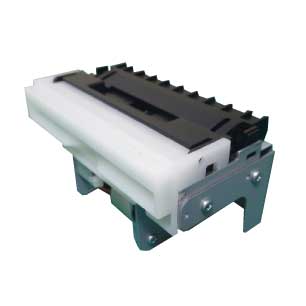

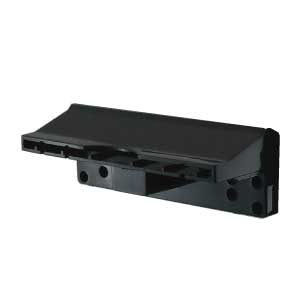

Option选件
